Perforated Cable Tray

Our superior quality Perforated cable trays are in high demand due to usage of high quality raw material which enhances life of product in all weather conditions, these technically advanced products are specially designed to satisfy requirements of our esteemed clients. Perforated Cable Trays are made of Mild Steel / CRC , Painted or hot dipped as per installation site requirement for various industries such as Ship Building, Steel & Power Plant, Cement Plant, sugar Industries etc.

Perforated cable tray are made for Easy Installations, Instant approach for repairs and replacement of cables.

Suitable for any structure wooden plank or Steel angle in any running length.

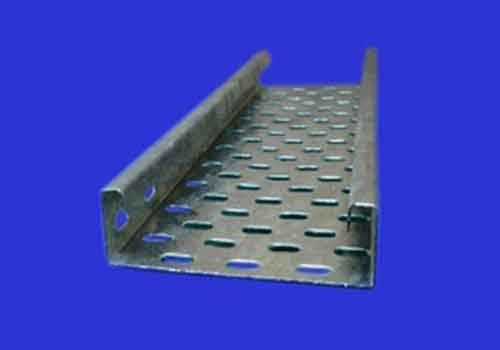

Straight Flange Type Cable Tray
Types Perforated Type Straight Flange

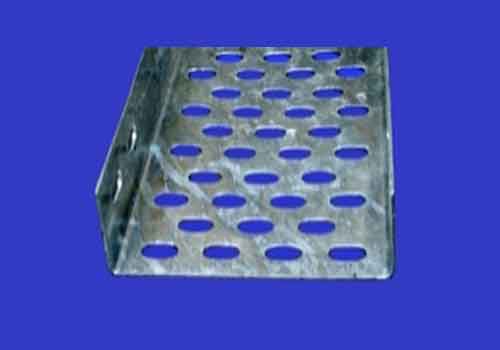

Perforated Type Straight Inward Bend
Strength Light, Medium & Heavy Duty
Raw Material Mild Steel IS 1079, Pre-Galvanised Sheet.
Width 50 mm - 900 mm
Height 25 mm - 100 mm
Thickness 1.2 mm –3.0 mm
Length 2500 mm/ 3000 mm
Finish Self Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, BS 729, ASTM 123, Painted (Redoxide, Painted & Powder Coated)
Inward Bend Type Cable Tray
