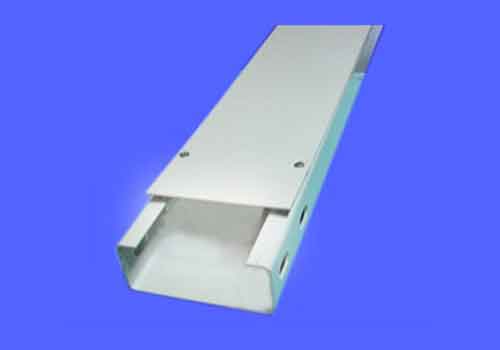

Raceways, Floor Trunking
Raceways are known to be best option for installation of under floor or under ceiling covered cables and networking cables requirements in I.T sectors and other industries. The high performing cable raceways are made using Mild Steel IS 1079, Pre-Galvainised Sheet, that provide in them superior quality as well as durability. Cable Raceways are manufactured in Single, double or triple compartments, Triple Compartments are normally designed to distribute power, data and voice cables in separate compartments.
|Raw Material||Mild Steel IS 1079, Pre-Galvainised Sheet|
|Width||75 mm – 600 mm|
|Height||50 mm – 100 mm|
|Thickness||1.6 mm – 3 mm|
|Finish||Self Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, BS 729, ASTM 123, Painted (Redoxide, Painted & Powder Coated)|
Remarks: All Bends are made available as per Requirement.
Finish Available : Self Finish, Pre-Galvanised, Hot Dip Galvanising as per IS 2629/4759, BS 729, ASTM 123, Painted (Red oxide, Painted & Powder Coated)
